Description

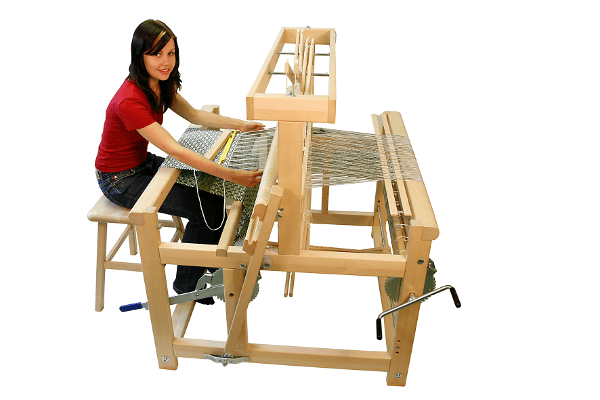

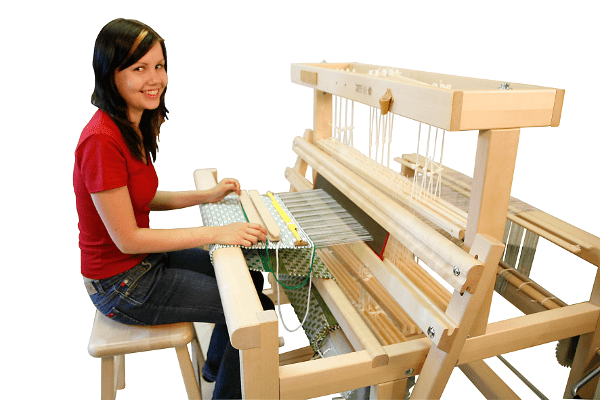

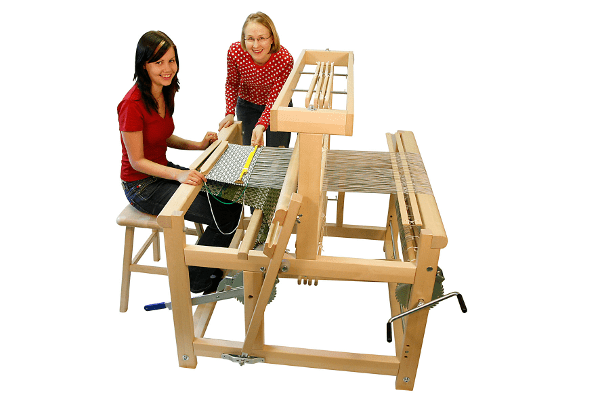

The Toika Jaana floor loom is an exceptional choice for weavers seeking a full-featured, traditional countermarch loom that is specifically designed for smaller spaces. Combining Toika’s renowned Finnish craftsmanship with a compact footprint Jaana offers a comfortable and efficient weaving experience without compromising on quality or versatility.
Key Features and Benefits
Traditional Countermarch Action. Jaana’s countermarch action both raises and lowers shafts to give a big open shed with light treadling, making long weaving sessions comfortable.
Built for Durability and Longevity. Crafted from high-quality, air and kiln-dried Finnish birch, Jaana is built for durability. Its sturdy frame and robust joinery ensure stability under high warp tension and make Jaana capable of withstanding years of consistent use.
Easy tie-up, threading and sleying. The back, breast and knee beams are removable which makes access to the lamms and treadles a breeze. If you adopt the “top of the lamms” system you can cut the time it takes to tie-up and avoid back-breaking re-tying of the treadles.
Upgrade to Toika ES Computer Control
Jaana can also be specified with the Toika ES-16 computer control system. A traditional treadled Jaana can be converted at a later time.
Effortless Shedding with Single Pedal Control. Revolutionizing the traditional weaving process, the Jaana ES-16 eliminates the need for multiple treadles, lamms, and jacks. Instead, a single, light-touch pedal (similar to a sewing machine pedal) effortlessly controls the shed opening. This significantly reduces physical strain and allows weavers to focus on the creative aspects of their work.
True Countermarch Action with Automatic Compensation. The ES unit ensures a precise and even countermarch shed, where programmed shafts rise and others sink, creating a clear and consistent opening for the shuttle. The system automatically compensates the lift height for the shafts furthest from the weaver, guaranteeing uniformity across the entire warp.
Computer-Assisted Design and Error-Free Weaving. Powered by the latest version of WeavePoint software (and also compatible with Fiberworks PCW), Jaana ES-16 connects directly to your computer via a USB port. Patterns can be designed within the software or downloaded from online sources and further refined. The computer controlled dobby eliminates tie-up and treadling errors, enabling you to explore complex drafts and intricate fabrics with confidence.
Versatile Weaving Modes. Adapt your weaving pace to your project and preference with three distinct weaving modes:
- Normal Mode: Keeps the shed open for as long as the pedal is depressed, allowing even weft placement, and beating with the shed open or closed.
- Fast Mode: Closes the current shed and opens the next with a single pedal press; ideal for quick, rhythmic weaving.
- Slow Mode: Opens the shed with one press and closes it with another, offering more control for delicate work.
There’s also a Reverse Mode: this allows pick-by-pick unweaving, correcting mistakes effortlessly.
Built To Your Specification
Weaving Width. Jaana can be specified in either 80cm or 100cm weaving widths.
Number of Shafts. Choose from 4 shafts with 4 treadles, or 8 shafts with 8 treadles. The Jaana ES has 16 shafts.
Beater. Jaana has a standing (underslung) beater.
Beams. You can choose to convert the warp beam to sectional warping. This deletes the apron on the warp beam.
Dimensions
| Weaving Width | Total Width | Weight |
| 80cm | 117cm | 70kg |
| 100cm | 137cm | 80kg |
| Height | Depth | Depth with Bench |
| 128cm | 117cm | 158cm |
Comprehensive Accessories
We supply each Jaana loom with:
- A minimum of 100 Texsolv heddles per shaft.
- A pre-cut Texsolv cord set and pegs to connect treadles, lamms, jacks and shafts. Let us know if you would prefer the “top of the lamms” tie-up.
- Linen aprons with eyelets and warp bars to reduce loom waste.
- A fixed height “Laila” bench.
- A Toika “Arctic” stainless steel reed in the density of your choice. If you need more than one reed, it makes sense to order them for delivery with your new loom. Contact us to discuss your requirements.
Delivery and Assembly
Your new Toika Jaana loom is built to your specification in the factory in Finland, packed in a custom fitted wooden crate, and shipped direct to your door. Assembly is straightforward with the horizontal elements fitted between the side frames and furniture bolts used to tighten the frame up. There are written and video instructions in our Knowledge Base.
Summary
The Toika Jaana floor loom is more than just a piece of equipment; it’s an investment in a lifetime of weaving enjoyment, offering the reliability, versatility, and ergonomic design you would expect from a Scandinavian loom.
